Description
Salient Features:

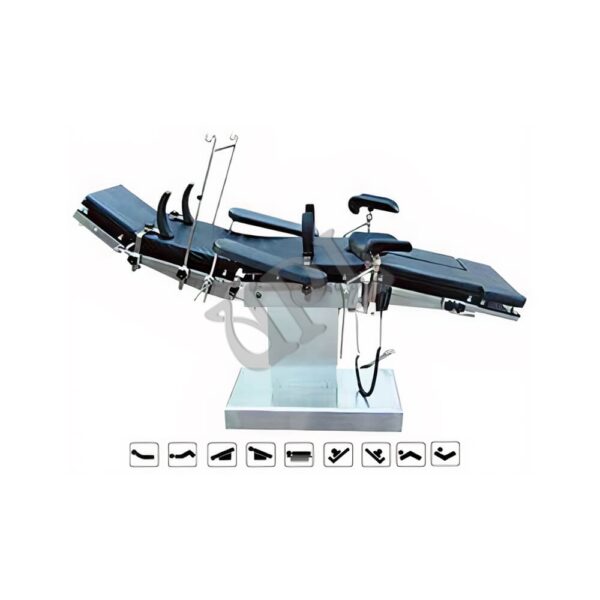

- Operation Table Electric is specially designed for cerebral surgery.
- It can be used for surgery of neck, thoracic and abdominal cavity, perineum and extremity, and
also for operation in obstetric department, urinary department, and E.N.T. department as a
multi-function operation table. - The particular advantage of the operation table is that the platform can be lowered to a very low
degree, especially convenient for the operation done at a sitting posture. - It is equipped with whole set of specialized head supports.
- The forward tilting, backward tilting, leftward tilting and rightward tilting, upward and
downward function of the platform can be achieved by electric push by Electric motor.
Specifications):
- Length 2000mm
- Width 500mm
- Height 550mm
- Height) 800mm
Main Technical Parameters:
- Reversed Trendelenburg >22°
- Trendelenburg >22°
- Lateral Tilt >15°
- Head Section Raised from the Horizontal >45 °
- Head Section Lowered from the Horizontal >90°
- Back Section Raised from the Horizontal >45 °
- Back Section Lowered from the Horizontal >15°
- Leg Section Lowered from the Horizontal >90°
- Leg Section Extension >90 mm
- Kidney Bridge Elevation >120 mm
- Supply AC 220V±10%,50HZ
